Icarus-E

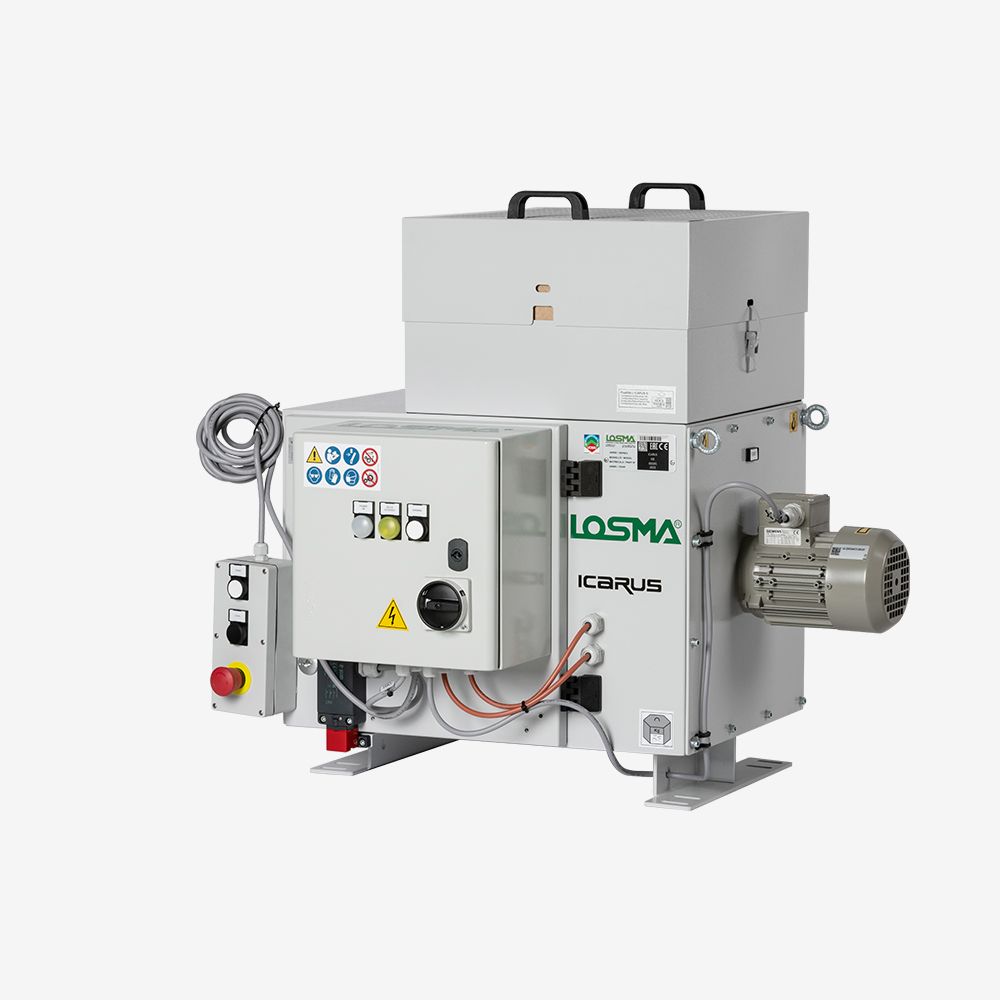

The Icarus-E is an electrostatic extractor for the purification of air containing oil mists, micro-mists and fumes from all major machining operations that use whole oil as a coolant.
It is available in 3 sizes with flow rates from 600 to 1,700 m3/h and with different combinations of increasing filtration efficiency, up to an efficiency of 99.95% (when using the final HEPA H13 filter).

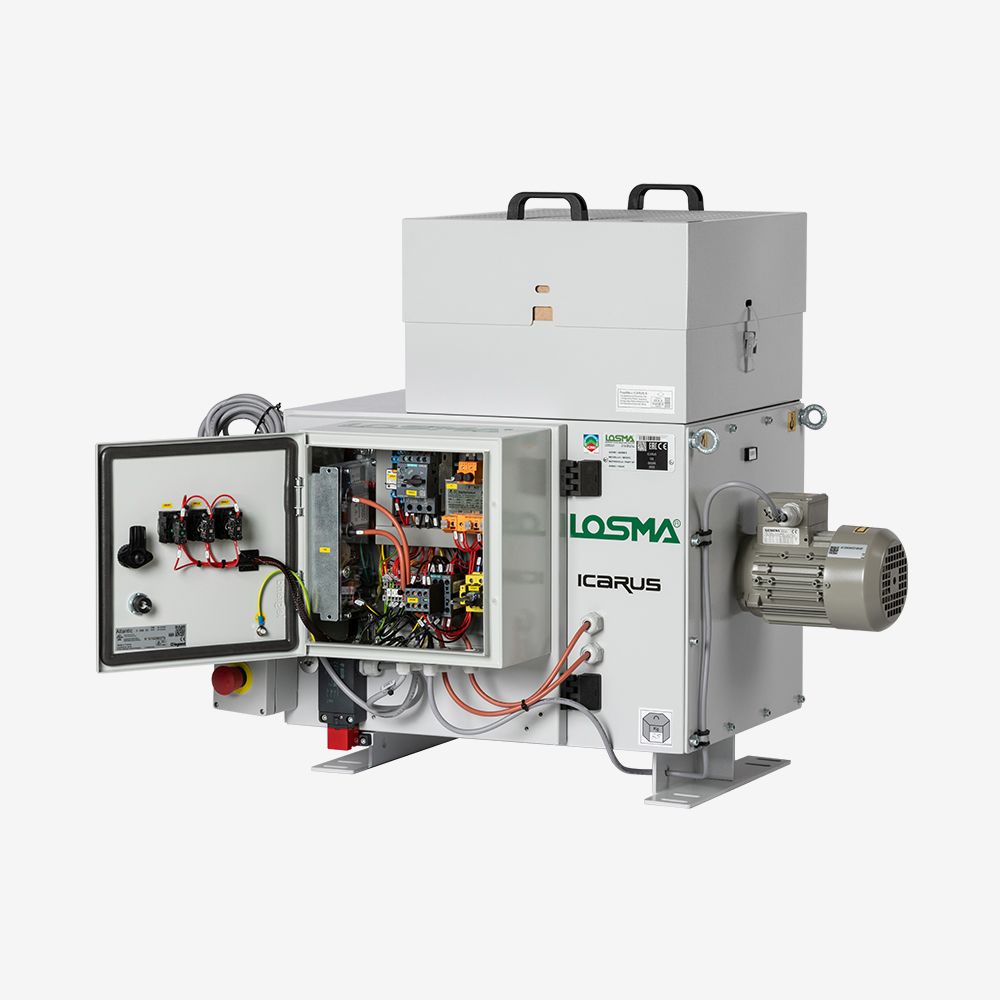

Standard unit supply includes a CE-compliant electrical panel, including a clogging and voltage presence light and safety microswitch.
The possibility of using pre and post filtration systems allows for the use of the Icarus-E filter for all modern mechanical processes, from the simplest to the most demanding. The 3 different construction models and relative suction power of the Icarus-E filter also make it easier to choose a solution that is always adequate for your needs without wasting energy on oversized systems or, on the contrary, inefficient on inadequately sized systems.
Icarus-E only uses regenerable filters, allowing considerable savings in the purchase, maintenance and disposal of normal clogging filters.
* In the Icarus-E S version the pre-filtration consists of an F7 filter.
Access to the filter section is truly simple and straightforward, with no need to unscrew or dismantle anything. Simply open the door closed with two locks for easy access to the filters, which can be removed very easily and replaced quickly.
- The polluted air is suctioned in thanks to the vacuum generated by a high-efficiency centrifugal fan placed over the filters. The fan is thus free from any possibility of damage as it only works with clean air, free of any residual pollutants.
- The air initially passes through a special baffle that has the task of evenly distributing the suctioned air over the entire useful contact surface of the filters, and cells.
- After passing through a metal pre-filter (regenerable), the air is conveyed into the ionising section of the cells, electrostatically charging itself and then passing into the collector section composed of numerous aluminium foils that firmly retain even the most microscopic impurities.
SEQUENCE OF THE SUPPLIED FILTERS:
The arrangement of the Icarus Electrostatic internal filters is designed to provide increasing filtration efficiency. In the case of sizes M and L, the sequence Metallic G2 + Electrostatic Cell is repeated twice.
The filters are easily accessible by removing the tightening screws and opening the side door, allowing for simple, fast and clean maintenance.
1. METALLIC G2
65-80% efficiency in accordance with standard UNI EN 779.
2. SYNTHETIC F7
85% efficiency.
3. ELECTROSTATIC CELL
LOSMA guarantees that each filter unit is individually tested through rigorous control procedures.
A quality and functional test certificate is issued for each unit.
Pre-filter for chips and dust, equipped with metal and synthetic filter stages. Useful for maximising filtration efficiency at high outputs of oil mist mixed with metal chips and dust.
Can obtain a very high level of filtration, 99.95% according to EN 1822. Especially suitable in the presence of micro-mists or fumes.
